Convex Array Transducer
Designed for abdominal and obstetric ultrasound, delivering wide-angle sector scanning with clear, stable imaging.
Wide-angle sector scan
High-resolution imaging
Optimized penetration depth
For abdomen and obstetrics & gynecology

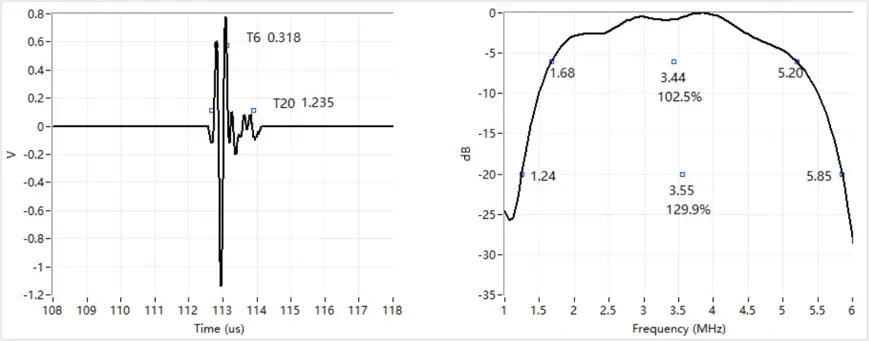

Waveform and Spectrum
Model Specifications
| Model | Center Frequency (MHz) | Element No. | Pitch (mm) | Elevation (mm) | ROC (mm) |
|---|---|---|---|---|---|
| S3C51 | 3.5 | 160 | 0.35 | 13 | 50 |
| S3C53 | 3.2 | 128 | 0.49 | 13 | 50 |
| S3C54 | 3.2 | 128 | 0.468 | 13 | 50 |
| S3C55 | 3.5 | 192 | 0.35 | 11.5 | 55 |
| S3C57 | 3.7 | 160 | 0.382 | 13 | 50 |
| X3C51 | 3.5 | 160*3 | 0.35 | 13.5 | 50 |
| S6C51 | 6.5 | 128 | 0.217 | 6.5 | 15.5 |
| S6E51 | 6.5 | 128 | 0.205 | 5 | 10 |
| S6E53 | 6.5 | 192 | 0.205 | 6.5 | 10 |
